In industries such as mining, construction, and bulk material handling, efficiency and safety heavily rely on the right type of conveyor belt. When materials need to be transported on inclined surfaces or in challenging terrain, the Chevron Conveyor Belt stands out as a top solution. Its unique V-shaped pattern enhances grip, reduces spillage, and increases carrying capacity on steep inclines. However, not all Chevron belts are created equal. To maximize operational output, businesses must evaluate several key features before making a purchase.
Below are the top 5 features to consider when choosing a Chevron Conveyor Belt to ensure high performance, durability, and cost-efficiency in your operations.
The design and height of the chevron pattern are among the most critical aspects to assess. These patterns are engineered to increase friction and grip on steep angles, allowing materials like sand, coal, gravel, and ore to be transported without sliding back. However, different operations require specific designs.
When evaluating this feature, consider the following:
Chevron height: Higher cleats are ideal for transporting bulkier or heavier loads at steep angles, while medium-height chevrons may suffice for lighter materials.
Pattern shape and spacing: The cleat’s geometry must align with your material type. For instance, open V patterns are great for wet or muddy loads, while closed patterns are better for finer materials.
Load retention ability: A deeper cleat depth ensures more material is held between cleats, minimizing spillage during transport.
A well-designed Chevron Conveyor Belt with optimized cleat height and spacing not only improves grip but also reduces wear on the belt and the conveyor components, enhancing the system's lifespan.
Chevron belts often operate in harsh and abrasive environments. Therefore, the quality and durability of the base material are essential. The rubber compound should provide resistance to the specific threats present in your industry, such as:
Heat resistance: If your conveyor system handles materials at elevated temperatures—like clinker or coke—you'll need a heat-resistant Chevron Conveyor Belt to prevent warping or cracking.
Cold resistance: For operations in sub-zero environments or for handling frozen materials, a cold-resistant Chevron belt ensures flexibility and strength remain intact.
Tear and wear resistance: Heavy-duty applications often involve sharp-edged rocks and abrasive bulk. A belt with excellent tensile strength and surface resilience will withstand the demands without frequent replacements.
The long-term value of a conveyor belt hinges on the rubber compound's ability to maintain performance under mechanical, chemical, and environmental stress. Always verify that the belt's construction complies with industry standards for tear, wear, and temperature resistance.
The core structure of a Chevron Conveyor Belt—typically made from EP (polyester/nylon) fabric—plays a significant role in determining tensile strength and impact resistance. The number of fabric plies and their configuration directly affect the belt’s ability to withstand heavy loads and high-speed operations.
Key considerations include:
Fabric strength (EP ratings): Higher EP ratings offer better performance in demanding applications.
Number of layers: More plies provide greater durability, though they may reduce flexibility. Balance is key depending on your belt's required flexibility and strength.
Adhesion between layers: Strong bonding prevents delamination under stress or temperature fluctuations.
Choosing a belt with robust internal construction ensures longer service life and reduces the need for costly downtime due to belt failure. Premium Chevron belts incorporate multi-layer fabrics with superior adhesion and alignment to handle extreme operational loads.
No two conveyor systems are exactly alike. Therefore, the ability to customize a Chevron Conveyor Belt is a major advantage. This includes options like:
Custom cleat designs: Depending on your application, you might need Z-shaped, C-shaped, or Y-shaped chevrons for optimal material flow.
Width and length options: Conveyor belts must match your equipment's dimensions exactly for smooth operation.

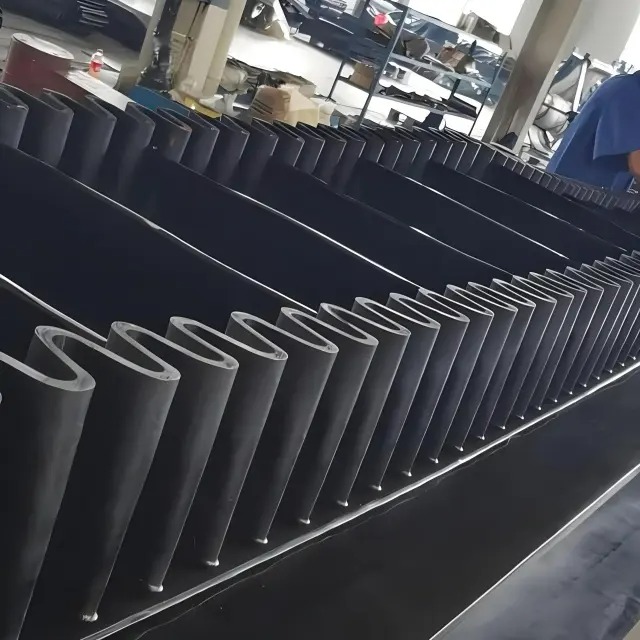

Sidewall attachments: In some systems, sidewalls can be added to enhance the belt's ability to carry loose or fine materials without spillage.
Belt edge type: Choose between cut edges and molded edges based on your operational preference and safety requirements.
Having the flexibility to adapt the Chevron Conveyor Belt to your unique requirements boosts performance and reduces maintenance costs. It also allows for better handling of non-standard materials or irregular system configurations.
Downtime in material handling operations can result in significant financial loss. Therefore, selecting a Chevron belt that simplifies maintenance without compromising strength is critical. Look for these factors:
Easy cleaning design: Certain cleat patterns are easier to clean and less likely to accumulate sticky materials like clay or wet sand.
Wear indicators: Some modern belts come with built-in indicators that help schedule timely replacements before a major failure occurs.
Compatibility with cleaning systems: Ensure the belt works well with your existing scrapers, brushes, and return rollers.
Service life warranty or specifications: A well-made Chevron belt can deliver thousands of hours of reliable service under proper use.
Investing in a belt that balances durability and easy upkeep can significantly reduce your total cost of ownership and minimize unplanned stoppages.
Selecting the right Chevron Conveyor Belt is not merely a matter of choosing a high-traction surface. It involves analyzing your specific operational needs, from incline steepness to environmental conditions, and ensuring the belt’s construction and materials can handle these challenges. By focusing on chevron design, compound resistance, reinforcement, system compatibility, and maintenance ease, you ensure a cost-effective, long-lasting investment.
For businesses seeking a reliable and custom-engineered Chevron Conveyor Belt solution, our product range offers performance-proven belts designed to operate efficiently under the most demanding conditions. Each belt is manufactured to industry standards with a focus on wear resistance, operational safety, and seamless material handling.
Contact us today to explore our selection and find the ideal belt solution for your operational needs. Our experienced technical team is ready to provide guidance, quotes, and support tailored to your industry and application.
